BX125SW-HA

5 inch Rubber Swivel Caster

Features
Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
Bearing: #6202 double ball bearings to enhance the rotation.
Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.
Steel wheel covers to prevent the dust, water and other materials.

Applications

5x1.5 inch Rubber Swivel Caster. It can load 300kg. With elastic rubber wheel, the features of high elasticity, good load capacity and wear resistances. It is suitable for most ground, except oily place.

Add to request list Caster icon

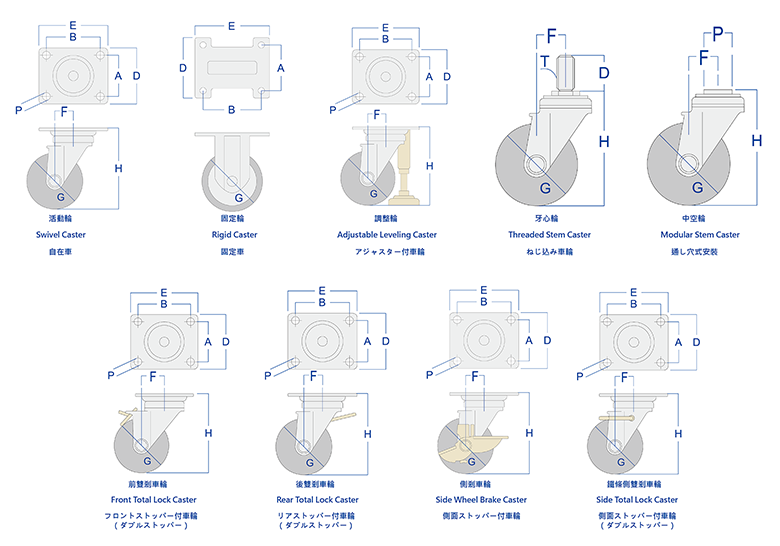

Specification

Item Number BX125SW-HA
Type Swivel Caster
Wheel Type Elastic Rubber
Wheel Diameter(G) x Width 5x1½ inch (125x38 mm)
Overall Height(H) 178 mm
Load Capacity 300 kg
Bolt Hole Center(AxB) 85x85 mm
Plate Size(DxE) 110x110 mm
Bolt Hole(P) Φ11x21
Wheel Bearing #6202 Double Ball Bearings
Fork Structure Pressed Steel；Zinc Plated
Eccentricity(F) 42 mm
Wheel Core Aluminum Core
Weight 2.22 kg
Others Steel Wheel Cover
