EB125SWM-GA

5 inch Modular Stem Rubber Caster

Features

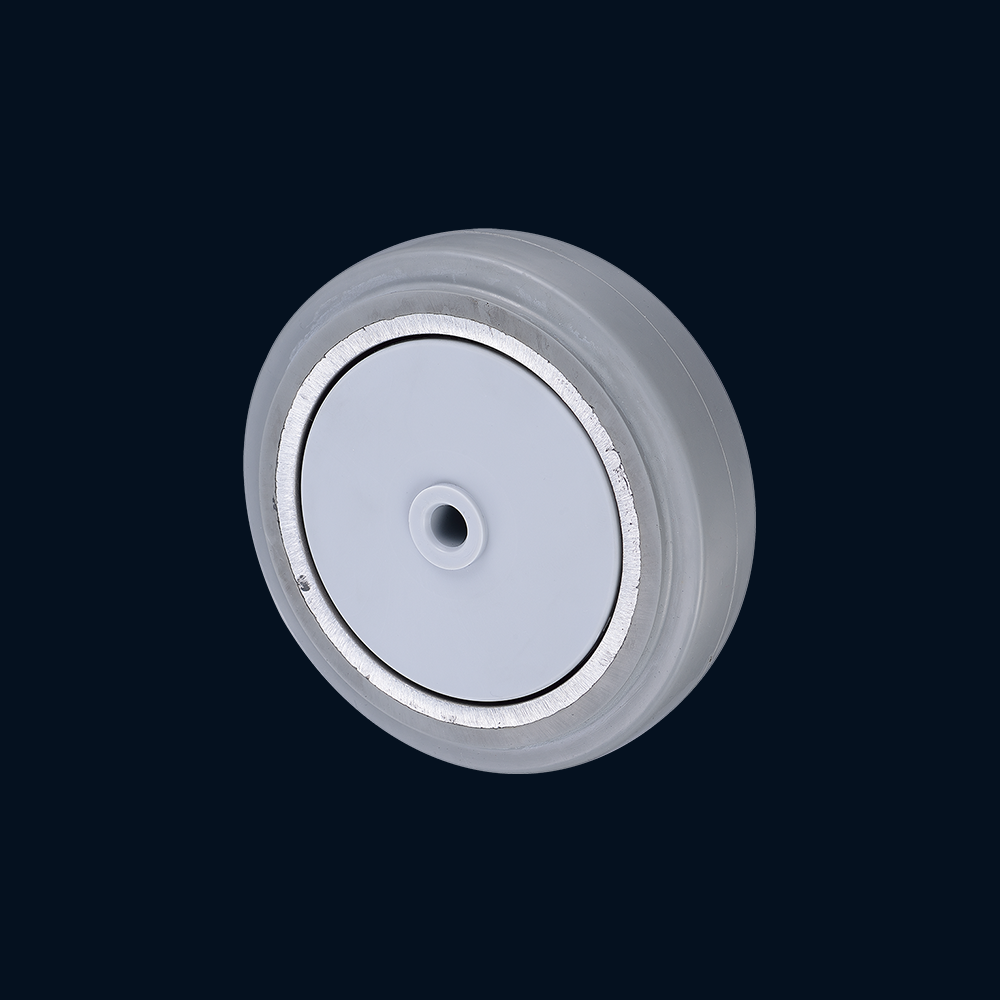

Wheel: Elastic Rubber Wheel (gray), with the features of high elasticity, good load capacity and wear resistances.
Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
Bearing: #6202 single ball bearing to improve the rolling.
Modular stem casters feature a Φ13 mm hollow rivet which will accept a wide variety of mounting stems.
Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.
Plastic wheel covers to prevent the dust, water and other materials.

Applications

5x1.25 inch Rubber Swivel Caster (Modular Stem Caster). It can load 200kg. With elastic rubber wheel, the features are high elasticity, good load capacity and wear resistances. It is suitable for most ground, except oily place.

Specification

Item Number EB125SWM-GA
Type Swivel Caster
Wheel Type Elastic Rubber
Wheel Diameter(G) x Width 5x1¼ inch (125x32 mm)
Overall Height(H) 155 mm
Load Capacity 200 kg
Center Hole(P) Φ13
Wheel Bearing #6202 Single Ball Bearing
Fork Structure Pressed Steel;Zinc Plated
Eccentricity(F) 32 mm
Wheel Core Aluminum Core
Weight 1.02 kg
Others Plastic Wheel Cover
