HO515BS-PUA

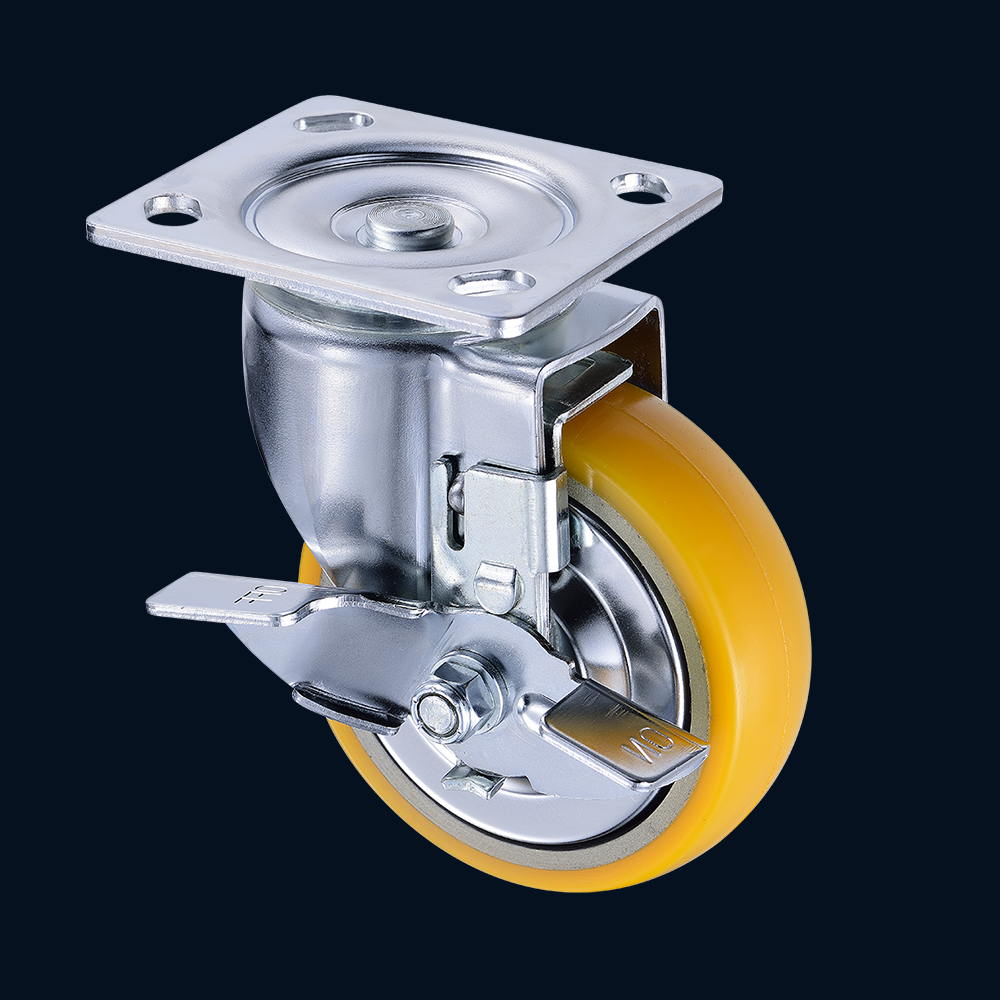

5 inch Chrome Plated PU Caster

Features
Wheel: Casting Polyurethane wheel (yellow) which is resistant to hydrolysis, oil and less pollution to the ground.
Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
Bearing: #6202 double ball bearings to enhance the rotation.
Fork: Side Wheel Brake with top plate. Pressed steel and integrally formed. Chrome plated.
Steel wheel cover to prevent the dust, water and other materials.

Applications

5x1.5 inch Chrome Plated PU Side Total Lock Caster. It can load 350kg. PU wheel with aluminum core which is resistant to oil and not easy to be rusted. The range of application is quite extensive.

Specification

Item Number HO515BS-PUA
Type Side Wheel Brake Caster
Wheel Type PU (Polyurethane)
Wheel Diameter(G) x Width 5x1½ inch (125x38 mm)
Overall Height(H) 165 mm
Load Capacity 350 kg
Bolt Hole Center(AxB) 70x85 mm
Plate Size(DxE) 105x115 mm
Bolt Hole(P) Φ12x20
Wheel Bearing #6202 Double Ball Bearings
Fork Structure Pressed Steel;Chrome Plated
Eccentricity(F) 42 mm
Wheel Core Aluminum Core
Weight 2.25 kg
Others Steel Wheel Cover
