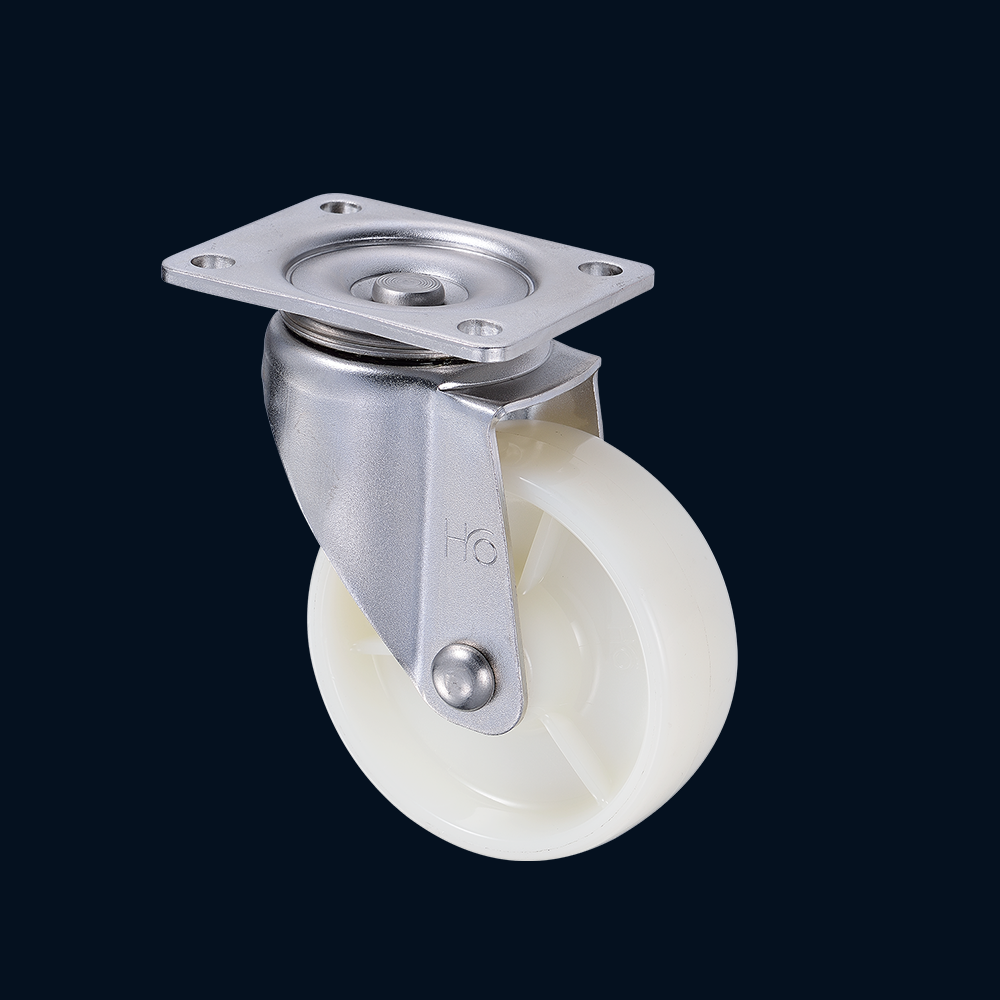

EB100SW-NL-#304 Stainless Steel Nylon Swivel Caster
EB100-NL-#304 Nylon Caster Wheel
EB100-NL-#304 Nylon Caster Wheel

EB100SW-NL-#304

4 inch Stainless Steel Nylon Caster

Features
Wheel: High grade Nylon wheel which is high toughness, resistant to wear, corrosion and moisture.
Bearing: Stainless steel #6201 double ball bearings to improve the rolling.
Fork: Swivel fork with top plate. Use #304 stainless steels and integrally formed.

Applications

4x1.25 inch Stainless Steel Nylon Swivel Castor. It can load 250kg. With nylon wheel, the features are excellent resistances against moisture and corrosion. It is suitable for moist and chemical place.

Add to request list Caster icon

Specification

Item Number EB100SW-NL-#304 EB100SW-NLP-#304
Type Swivel Caster
Wheel Type Nylon
Wheel Diameter(G) x Width 4x1¼ inch (100x32 mm)
Overall Height(H) 134 mm
Load Capacity 250 kg
Bolt Hole Center(AxB) 53x71 mm
Plate Size(DxE) 75x92 mm
Bolt Hole(P) Φ10
Wheel Bearing - #6201 Double Ball Bearings
Fork Structure #304 Stainless Steel
Eccentricity(F) 32 mm
Weight 0.867 kg 0.997 kg




Bolt Hole Options
Bolt Hole Center(AxB) 53x71 mm 44x73 mm 70x70 mm
Plate Size(DxE) 75x92 mm 70x96 mm 92x92 mm
Bolt Hole(P) Φ10 Φ9x12 Φ11
