BX415SW-NLP-PC

4 inch Nylon Swivel Caster(Wheel Box)

Features

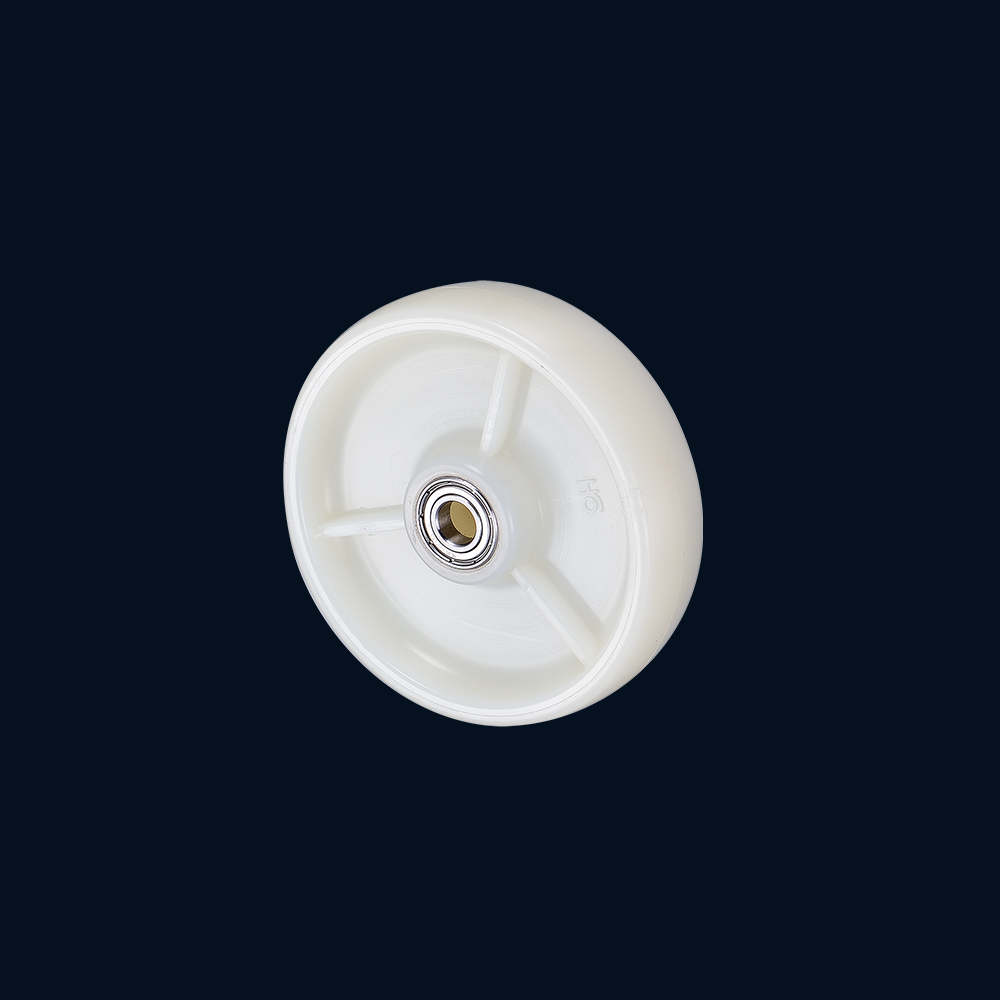

Wheel: High grade Nylon wheel which is high toughness, resistant to wear, corrosion and moisture.
Bearing: #6900 double ball bearings to improve the rolling.
Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.
Wheel box for protecting the users.

Applications

4x1 inch Light Duty Nylon Swivel Castor with Protection Box. It can load 150kg. With nylon wheel, the features are excellent resistances against moisture and corrosion. It is suitable for moist and chemical place.

Specification

Item Number BX415SW-NLP-PC
Type Swivel Caster
Wheel Type Nylon
Wheel Diameter(G) x Width 4x1 inch (100x25 mm)
Overall Height(H) 123 mm
Load Capacity 150 kg
Bolt Hole Center(AxB) 40x83 mm
Plate Size(DxE) 58x100 mm
Bolt Hole(P) Φ9
Wheel Bearing #6900 Double Ball Bearings
Fork Structure Pressed Steel;Zinc Plated
Eccentricity(F) 28 mm
Weight 0.591 kg
Others Protection Cover
