A425SW-NLP

4 inch Nylon Caster Wheel

Features

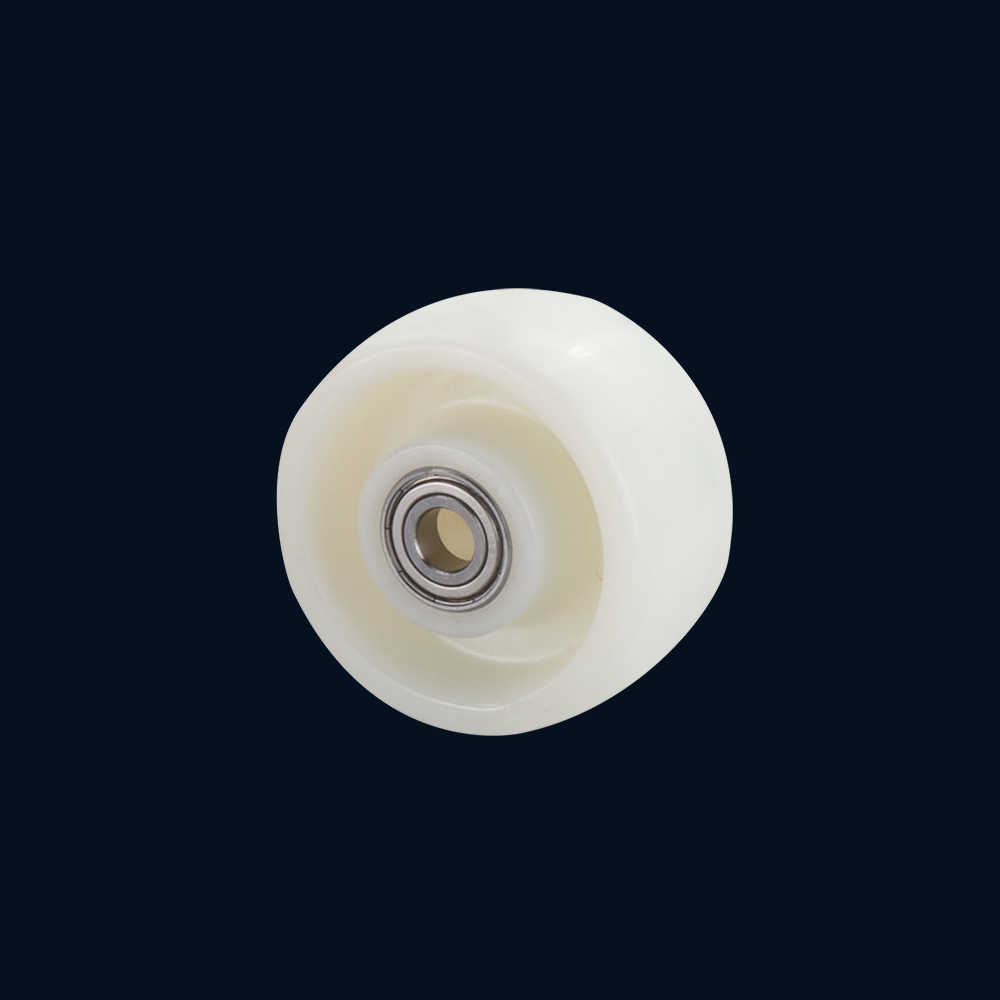

Wheel: High grade Nylon wheel which is high toughness, resistant to wear and moisture.
Bearing: #6202 double ball bearings and sleeve bearings to improve the rolling and stability.
Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.

Applications

4x2 inch Nylon Swivel Caster. It can load 300kg. With nylon wheel, the features are excellent resistances against moisture and corrosion. It is suitable for moist and chemical place.

Add to request list Caster icon

Specification

Item Number A425SW-NLP
Type Swivel Caster
Wheel Type Nylon
Wheel Diameter(G) x Width 4x2 inch (100x50 mm)
Overall Height(H) 141 mm
Load Capacity 300 kg
Bolt Hole Center(AxB) 70x85 mm
Plate Size(DxE) 105x115 mm
Bolt Hole(P) Φ12x20
Wheel Bearing #6202 Double Ball Bearings
Fork Structure Pressed Steel；Zinc Plated
Eccentricity(F) 44 mm
Weight 1.616 kg
