EB100SW-NL Nylon Swivel Caster

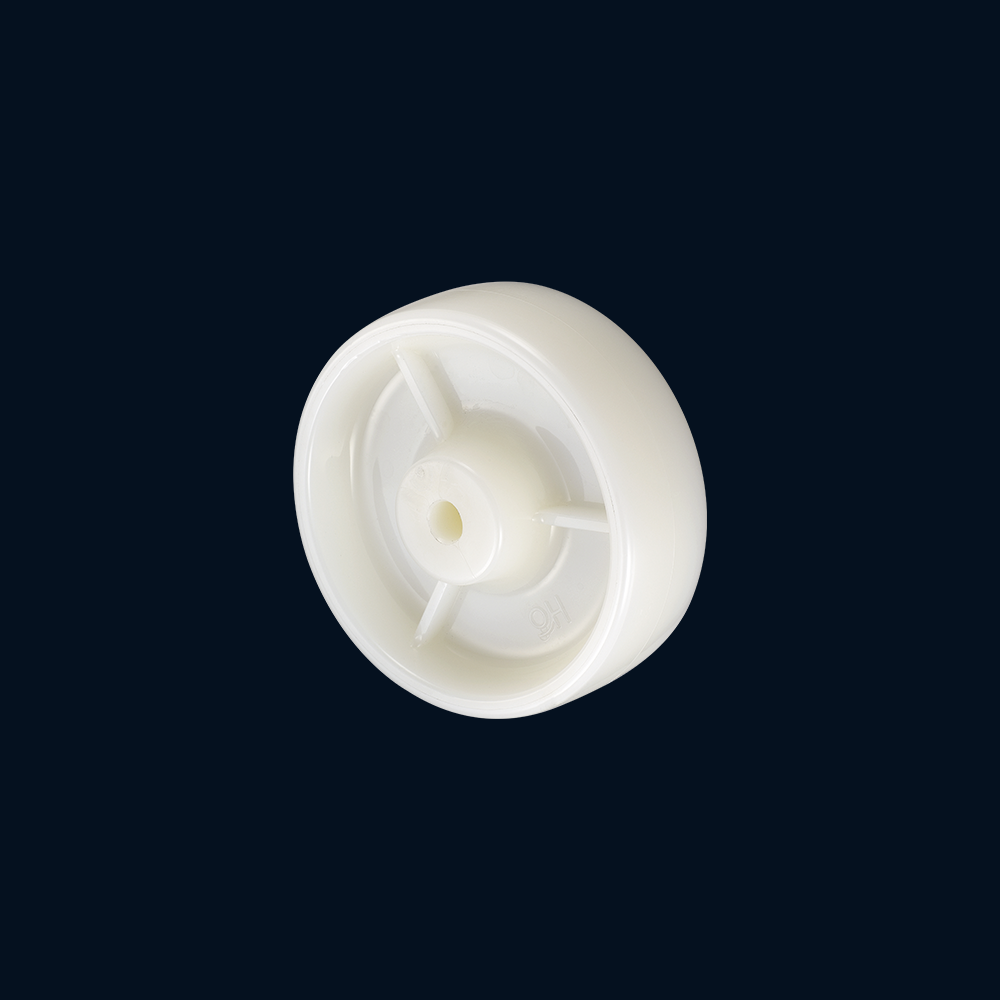

EB100-NL Nylon Caster Wheel
EB100-NL Nylon Caster Wheel

EB100SW-NL

4 inch Medium Duty Nylon Caster

Features
Wheel: High grade Nylon wheel which is high toughness, resistant to wear, corrosion and moisture.
Bearing: #6201 double ball bearings to improve the rolling.
Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.

Applications

4x1.25 inch Medium Duty Nylon Swivel Caster. It can load 200kg. With nylon wheel, the features are excellent resistances against moisture and corrosion. It is suitable for moist and chemical place.

Add to request list Caster icon

Specification

Item Number EB100SW-NL EB100SW-NLP
Type Swivel Caster
Wheel Type Nylon
Wheel Diameter(G) x Width 4x1¼ inch (100x32 mm)
Overall Height(H) 134 mm
Load Capacity 200 kg
Bolt Hole Center(AxB) 53x71 mm
Plate Size(DxE) 75x92 mm
Bolt Hole(P) Φ10
Wheel Bearing - #6201 Double Ball Bearings
Fork Structure Pressed Steel；Zinc Plated
Eccentricity(F) 32 mm
Weight 0.867 kg 0.95 kg




Bolt Hole Options
Bolt Hole Center(AxB) 53x71 mm 44x73 mm 70x70 mm
Plate Size(DxE) 75x92 mm 70x96 mm 92x92 mm
Bolt Hole(P) Φ10 Φ9x12 Φ11
