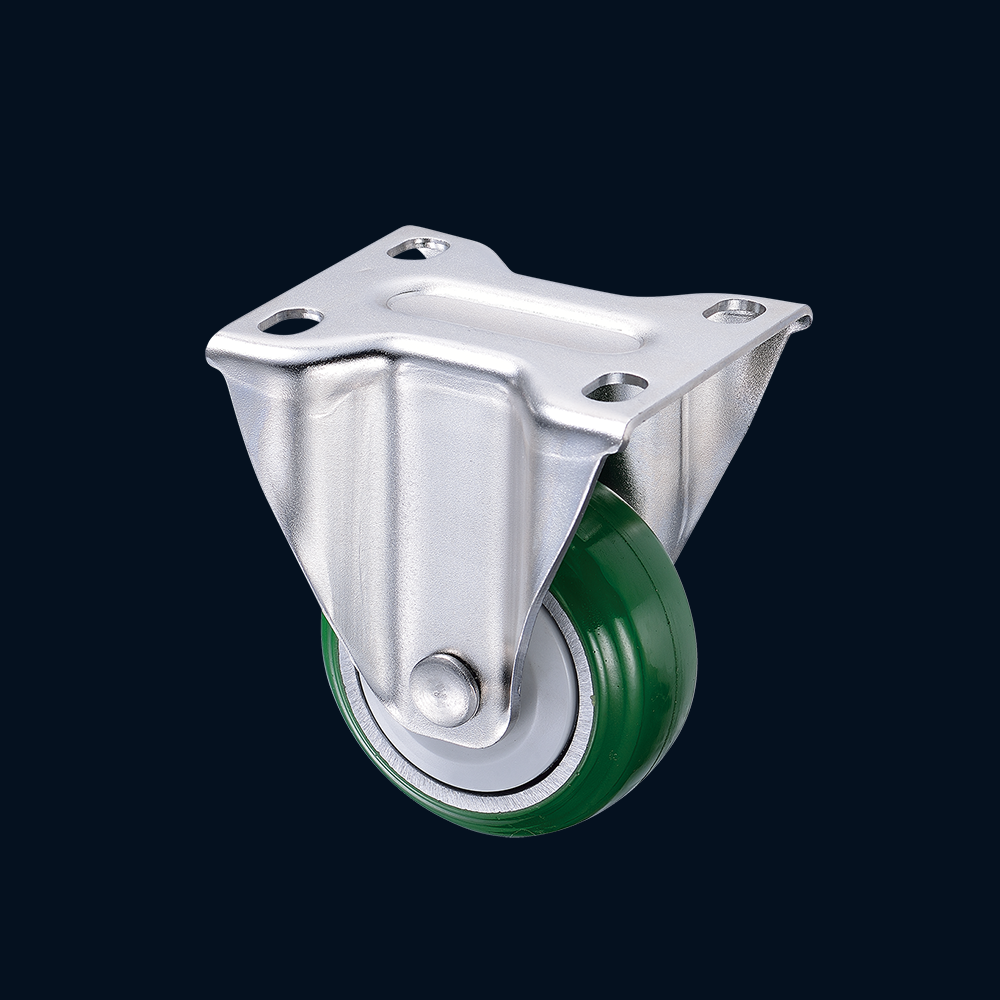

EB075FX-PUA-#304

3 inch Stainless Polyurethane Caster

Features
Wheel: Casting Polyurethane wheel (green) which is resistant to hydrolysis, oil and less pollution to the ground.
Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
Bearing: Stainless steel #6202 single ball bearing to improve the rolling.
Fork: Rigid type. Use #304 stainless steels and one-piece formed frame.
Plastic wheel covers to prevent the dust, water and other materials.

Applications

3x1.25 inch Stainless Steel PU Rigid Castor. It can load 250kg. PU wheel with aluminum core which is resistant to oil and not easy to be rusted. The range of application is quite extensive.

Add to request list Caster icon

Specification

Item Number EB075FX-PUA-#304
Type Rigid Caster
Wheel Type PU (Polyurethane)
Wheel Diameter(G) x Width 3x1¼ inch (75x32 mm)
Overall Height(H) 109 mm
Load Capacity 250 kg
Bolt Hole Center(AxB) 48x70 mm
Plate Size(DxE) 81x92 mm
Bolt Hole(P) Φ10x16
Wheel Bearing #6202 Single Ball Bearing
Fork Structure #304 Stainless Steel
Eccentricity(F) -
Wheel Core Aluminum Core
Weight 0.585 kg
Others Plastic Wheel Cover
