A314SW-CA Cast Iron Swivel Caster
A314-CA Cast Iron Caster Wheel

A314SW-CA

3 inch Cast Iron Swivel Caster

Features
Wheel: Cast Steel wheel, high impact resistance and not easy to be deformed.
Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.

Applications

3x1.25 inch Cast Iron Swivel Caster. It can load 200kg. With cast iron wheel, the features are high abrasion and resistant to extreme temperatures. It is suitable for bad environmental place.

Add to request list Caster icon

Specification

Item Number A314SW-CA
Type Swivel Caster
Wheel Type Cast Iron (CA)

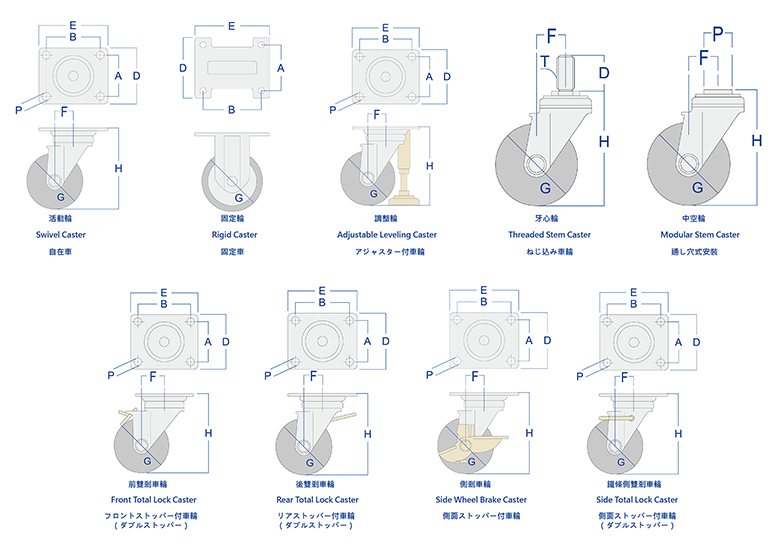

Wheel Diameter(G) x Width 3x1¼ inch (75x32 mm)
Overall Height(H) 106 mm
Load Capacity 200 kg
Bolt Hole Center(AxB) 44x73 mm
Plate Size(DxE) 70x96 mm
Bolt Hole(P) Φ9x12
Wheel Bearing -
Fork Structure Pressed Steel；Zinc Plated
Eccentricity(F) 28 mm
Weight 1.09 kg
