A82FX-PUA Polyurethane Rigid Caster
A82-PUA Polyurethane Caster Wheel

A82FX-PUA

200 mm Heavy Duty PU Rigid Caster

Features
Wheel: Casting Polyurethane wheel (green) which is resistant to hydrolysis, oil and less pollution to the ground.
Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
Bearing: #6303 double ball bearings to enhance the rotation.
Fork: Rigid type. Pressed Steel and one-piece formed frame. Zinc Plated.
Others: Steel wheel covers to prevent the dust, water and other materials.

Applications

8x2 inch Heavy Duty PU Rigid Caster. It can load 500kg. PU wheel with aluminum core which is resistant to oil and not easy to be rusted. The range of application is quite extensive.

Add to request list Caster icon

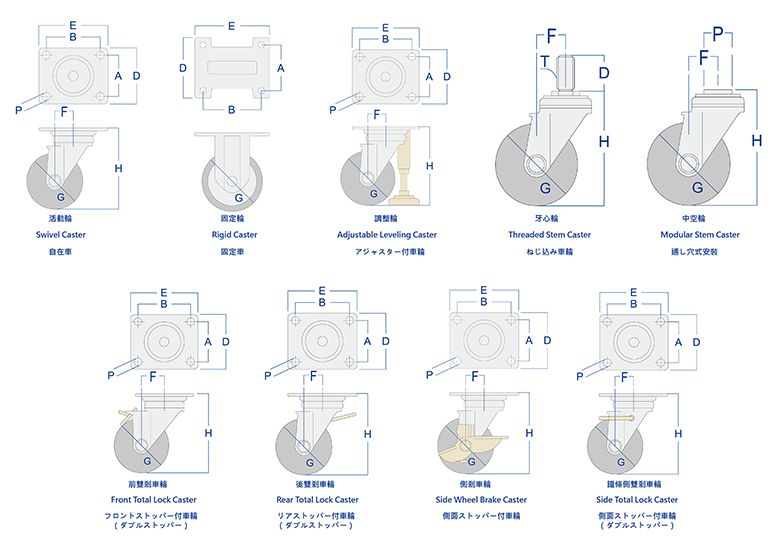

Specification

Item Number A82FX-PUA
Type Rigid Caster
Wheel Type PU (Polyurethane)
Wheel Diameter(G) x Width 8x2 inch (200x50 mm)
Overall Height(H) 242 mm
Load Capacity 500 kg
Bolt Hole Center(AxB) 77x112 mm
Plate Size(DxE) 113x142 mm
Bolt Hole(P) Φ12x20
Wheel Bearing #6303 Double Ball Bearings
Fork Structure Pressed Steel；Zinc Plated
Eccentricity(F) -
Wheel Core Aluminum Core
Weight 2.9 kg
Others Steel Wheel Cover
