A252AJ-NLS

2.5 inch Nylon Adjustable Caster

Features

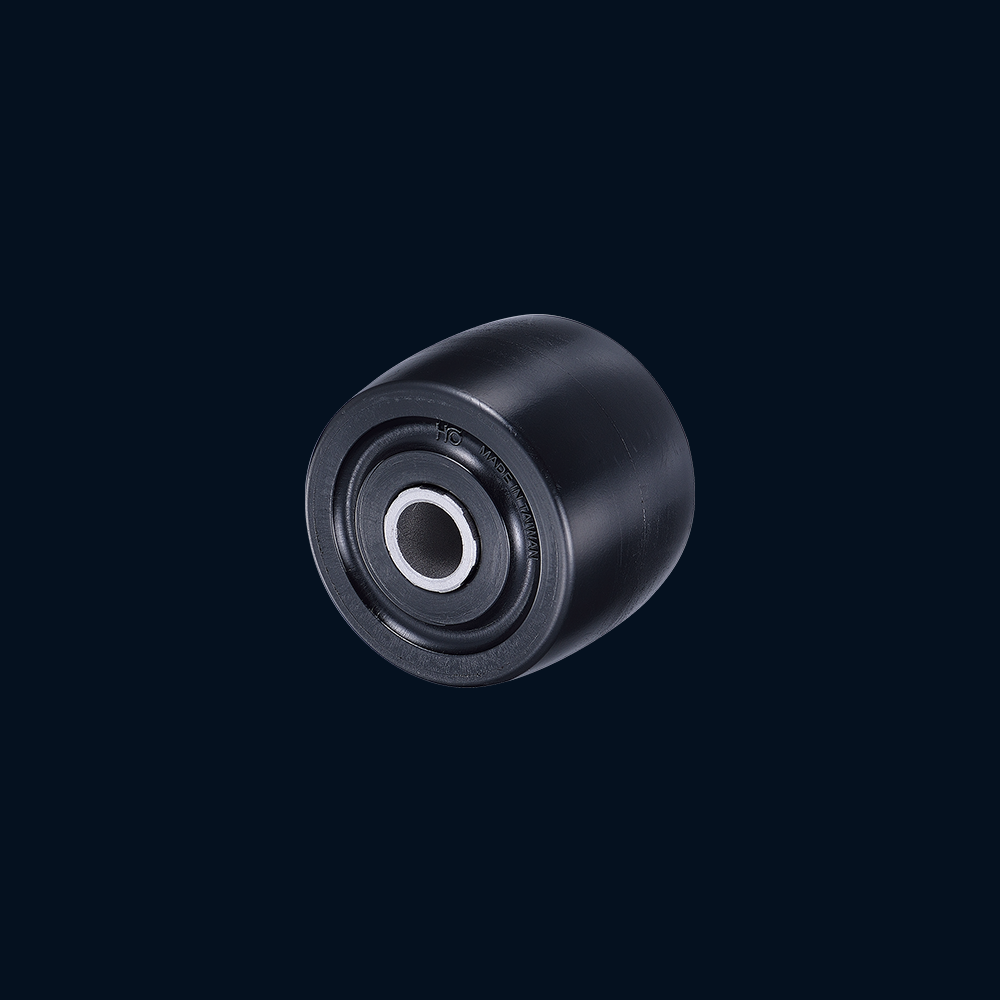

Wheel: High grade of nylon wheel, which is injection molding, with the features of wear, moisture, corrosion resistance and high load capacity.
Fork: Chrome plated. Spacer is made of grease resistance rubber which is anti-slippery, shock absorbing and can adjust the level.
Bearing: Plain and sleeve bearing- strengthen the protection between the axis and hub.
Bearing: Roller Bearing- increases the load capacity.
Bearing: Double ball bearings- #6201, improve the rollability.

Applications

2.5x2 inch Nylon Adjustable Caster. It can load 300kg. With nylon wheel, the features are excellent resistances against moisture and corrosion. It is suitable for moist and chemical place.

Add to request list Caster icon

Specification

Item Number A252AJ-NLS A252AJ-NLR A252AJ-NLP
Type Adjustable Caster
Wheel Type Nylon
Wheel Diameter(G) x Width 2½x2 inch (62x48 mm)
Overall Height(H) 92 / 107 mm
Load Capacity 300 kg
Bolt Hole Center(AxB) 95x95 mm
Plate Size(DxE) 120x120 mm
Bolt Hole(P) Φ11
Wheel Bearing Plain and Sleeve Bearing Roller Bearing #6201 Double Ball Bearings
Fork Structure Pressed Steel；Chrome Plated
Eccentricity(F) 28 mm
Weight 1.2 kg 1.22 kg 1.2 kg
Stem Size(T) TΦ 1/2x12 / Zinc Plated
Stem Length(D) 50 mm
