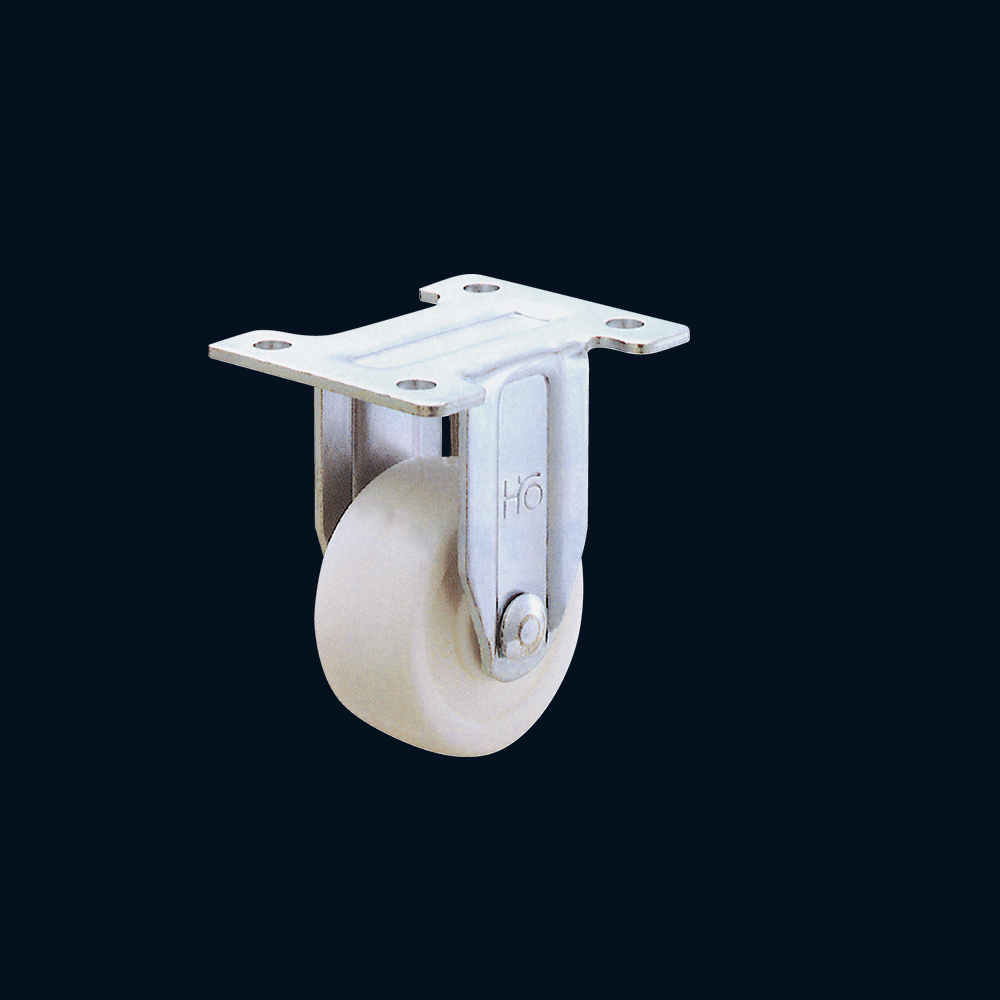

B5FX-W Polypropylene Rigid Caster
B5-W Polypropylene Caster Wheel

B5FX-W

2 inch PP Caster(White)

Features
Wheel: High Impact plastic wheel, resistant to humidity, corrosion.
Bearing: Plain and sleeve bearing- strengthen the protection between the axis and hub.
Fork: Rigid type. Pressed Steel and one-piece formed frame. Zinc Plated.

Applications

2x1 inch Polypropylene Rigid Caster. It can load 60kg. With polypropylene wheel, the features are resistant to humidity, corrosion and cheapest. It is suitable for most ground.

Add to request list Caster icon

Specification

Item Number B5FX-W
Type Rigid Caster
Wheel Type PP (Polypropylene)
Wheel Diameter(G) x Width 2x1 inch (50x25 mm)
Overall Height(H) 74 mm
Load Capacity 60 kg
Bolt Hole Center(AxB) 36x54 mm
Plate Size(DxE) 58x70 mm
Bolt Hole(P) Φ7
Bearing Plain and Sleeve Bearing
Fork Structure Pressed Steel；Zinc Plated
Eccentricity(F) -
Weight 0.18 kg
